Specifications
Confirm model, interface type, rate, power, airflow and software version before ordering.
ICX is a Ruckus switch designed for enterprise networks. It supports Ethernet connectivity.
This product category is a Ruckus switch designed for enterprise and data center networking. It supports QSFP ports.
This product is a module designed for enterprise and data center networking.

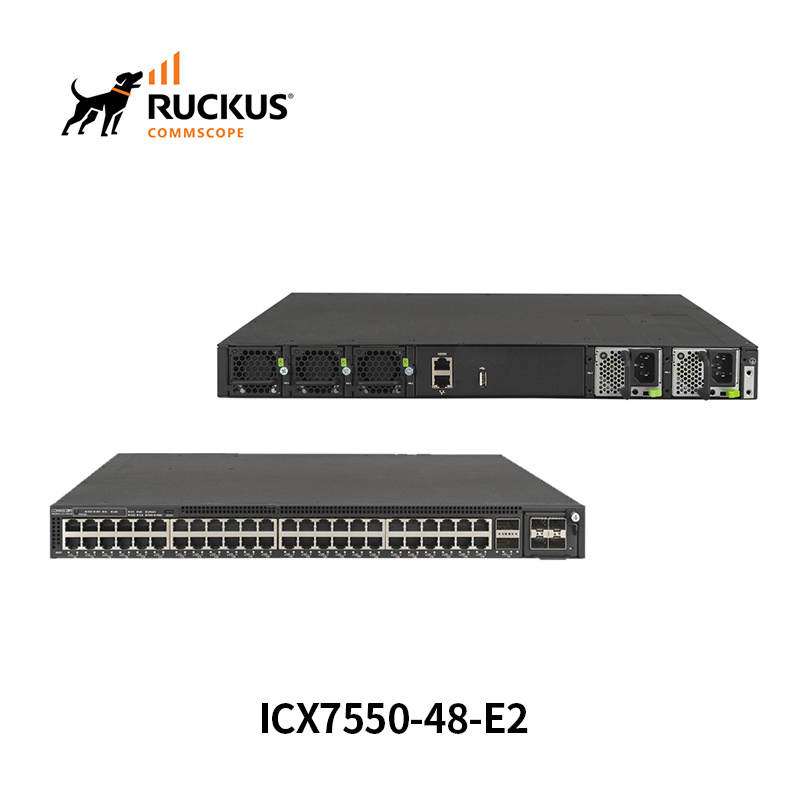

| RUCKUS ICX 7550-48-E2 | |
| Switching capacity (data rate, full duplex) | 416 Gbps |
| Forwarding capacity (data rate, full duplex) | 309 Mpps |
| 10/100/1000 Mbps RJ45 ports | 48 |
| 100/1000 Mbps/2.5 Gbps RJ45 ports (full duplex only) | - |
| 100/1000 Mbps/2.5/5/10 Gbps RJ45 downlinks (full duplex only) | - |
| Fixed ports: 100/1000 Mbps SFP downlinks | - |
| Fixed ports: 1/10 Gbps SFP/SFP+ downlinks | - |
| Modular ports: 1/10 Gbps SFP/SFP+ uplinks | 4 |
| 40 Gbps QSFP+ uplinks (max) | 4 |
| 40/100 Gbps QSFP28 uplinks (max) | - |
| PoE/PoE+ ports | - |
| Perpetual/Fast boot PoE ports | - |
| 802.3bt (90W) ports | - |
| Base IPv4/v6 L3 routing (Static routing, RIP) | y |
| Advanced IPv4/v6 L3 routing (BGP, OSPF, RIP, VRRP, PIM, PBR features) | With license |
| Aggregated Stacking Bandwidth | 960 Gbps |
| Stacking density (Max switches in a stack) | 12 |
| Stacking ports (Max ports usable for stacking) | Up to 2 x 40G QSFP+ |
| Max stacking distance (between stacked switches) | 10 Km |
